ESPost boxes for letters and courier parcels with video intercom
Post boxes for letters and courier parcels with video intercoms are a practical and secure solution that makes it easy to receive correspondence and parcels at any time. The built-in gate station with a camera allows you to visually identify visitors, increasing the comfort and security of your home.
Available models

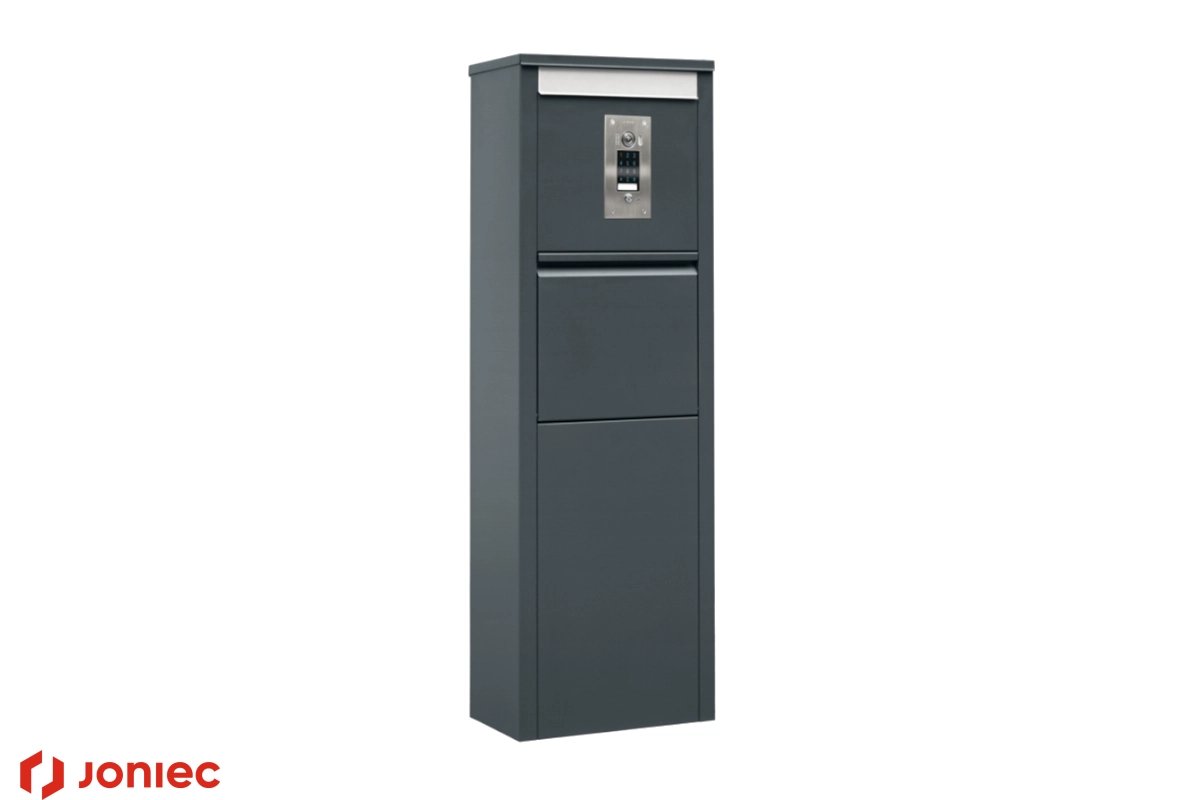

S- BOX25_VD Dimensions: 25 x 40 x 125 cm

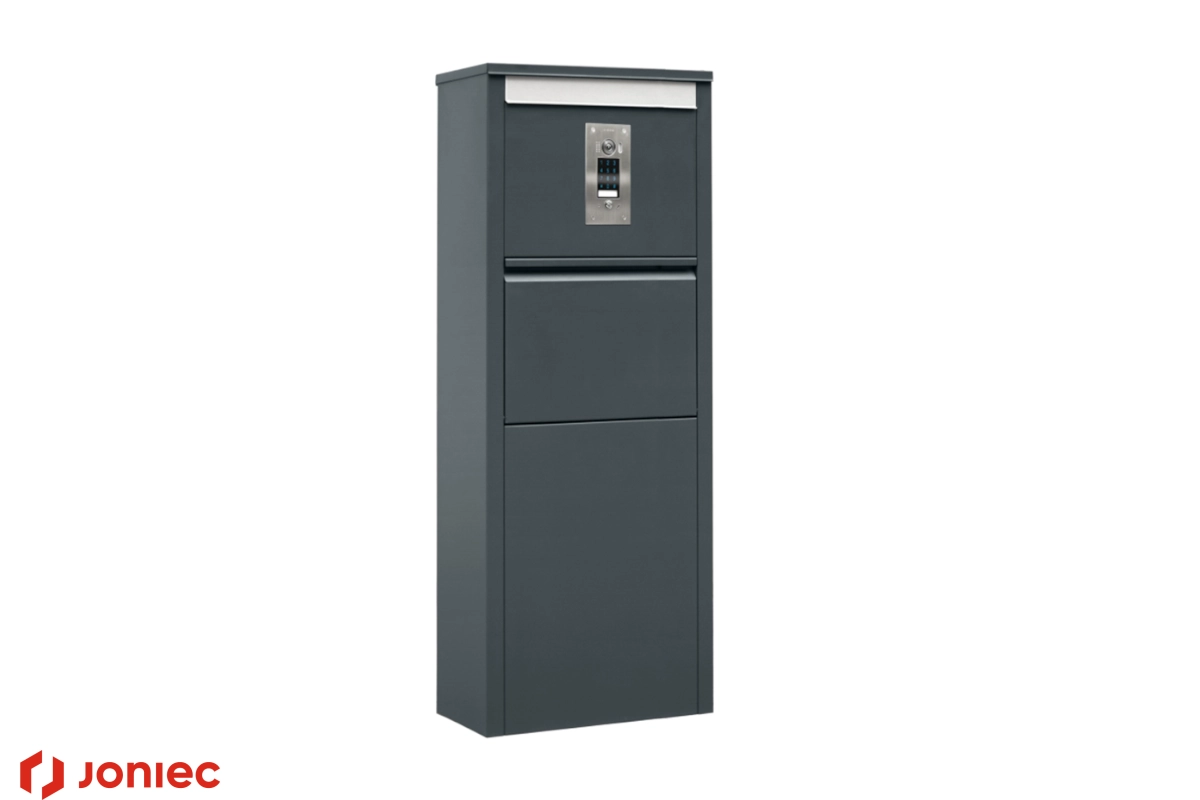

S- BOX28_VD Dimensions: 28 x 50,4 x 125 cm Product description

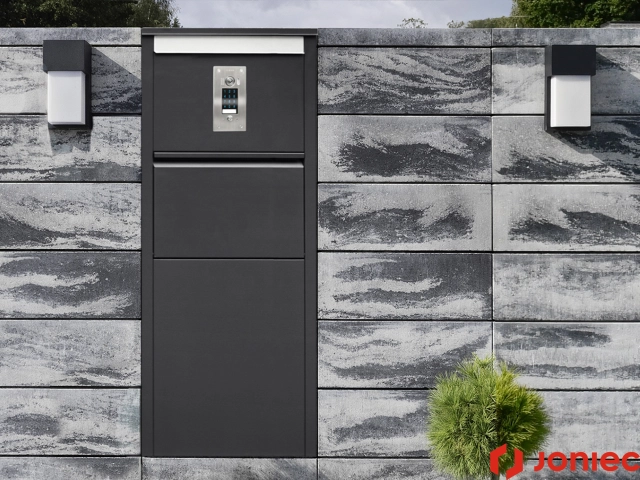

Post boxes for letters and courier parcels are designed for installation on hard surfaces, e.g. concrete blocks or foundations. The box is a solution that allows you to receive parcels and correspondence at any time of the day, even when you are not at home.The product is available in two sizes: 25 x 40 cm or 28 x 50.4 cm. Both versions are 125 cm high and can be increased using height adjusters (25 x 40 post) or fence blocks (28 x 50.4 post).
The upper part of the front panel has a letter slot secured with a flap with a bend for easy lifting. Below is a parcel slot with an automatic ratchet system to protect parcels from theft.
A gate station with a combination lock has been integrated into the front panel, allowing the entrance to be opened using a code. The monitor included in the set allows you to talk and view the image transmitted from the camera, which is located at the top of the gate station – the recommended installation height for the camera is 145 to 160 cm.
The station is made of brushed stainless steel and is equipped with a touch-sensitive, backlit numeric keypad. The keypad serves as an entry terminal and a device programming panel. A great convenience is the ability to freely set the colour of the backlighting of the keypad and nameplate when establishing a connection, talking and opening the entrance. LED night lighting allows for comfortable use of the device in conditions of poor visibility.
The S1401D gate station is equipped with a wide-angle camera that allows for 170° observation. This allows for comfortable use in places where the installation height is severely limited.
The rear panel is equipped with a lockable door with a window that allows you to check the contents without having to open it.
The wide range of colours in the series, including RAL 7016 (anthracite), RAL 7021 (graphite), RAL 8019 (dark brown) and RAL 9005 (black), allows you to find the perfect match for any fencing system.
Specification
| S-BOX25_VD | S- BOX28_VD | |
| Dimensions of the letter slot | 305 x 35 mm | 405 x 35 mm |
| Maximum letter size | C4 (229 x 324 mm) | E4 (280 x 400 mm) |
| Maximum parcel size | 300 x 300 x 150 mm | 385 x 300 x 170 mm |
| Gateway model | VIDOS DUO S1401D | VIDOS DUO S1401D |
| Camera viewing angle | 170° | 170° |
| Camera resolution | 2 Mpx | 2 Mpx |
| Monitor diagonal | 7" | 7" |
| Monitor resolution | 800 x 480 px | 800 x 480 px |
| Number of relay outputs | 1 (expandable to 2 with the B5 module) | 1 (expandable to 2 with the B5 module) |
| Supported languages | Polish, Greek, Hebrew, Italian, Croatian, Hungarian, Czech, German, English, Dutch, French | Polish, Greek, Hebrew, Italian, Croatian, Hungarian, Czech, German, English, Dutch, French |
| Support with the help of an application | No | No |
| The set includes | - letterbox and courier parcel box with built-in touch keyboard - 1 pc - P28/36 power supply unit - 1 pc - monitor in the selected colour (M1021W - white or M1021B - black) - 1 pc - set of keys for each drop box (2 x 2 pcs) | - letterbox and courier parcel box with built-in touch keyboard - 1 pc. - P28/36 power supply unit - 1 pc. - monitor in the selected colour (M1021W - white or M1021B - black) - 1 pc. - set of keys for each drop box (2 x 2 pcs) |
