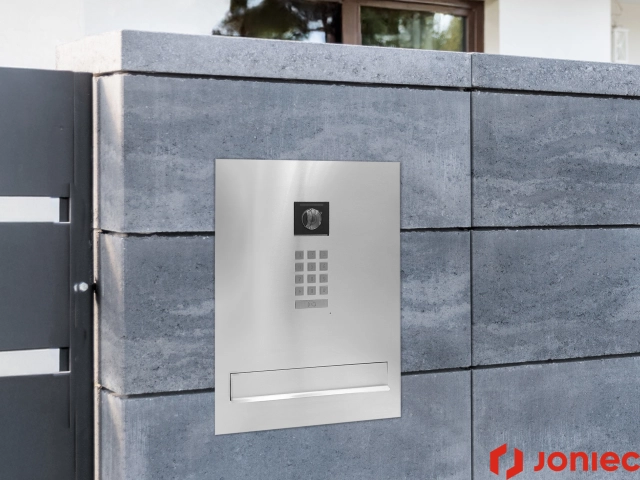

ESLetterboxes with X video intercom
A letterbox with an analogue AHD/WIFI video intercom is a modern solution that combines secure mail delivery with the ability to visually identify visitors, increasing the comfort and security of your home. The ability to operate it from an app gives you access to all its features regardless of where you are.
Small letterboxes
Available models

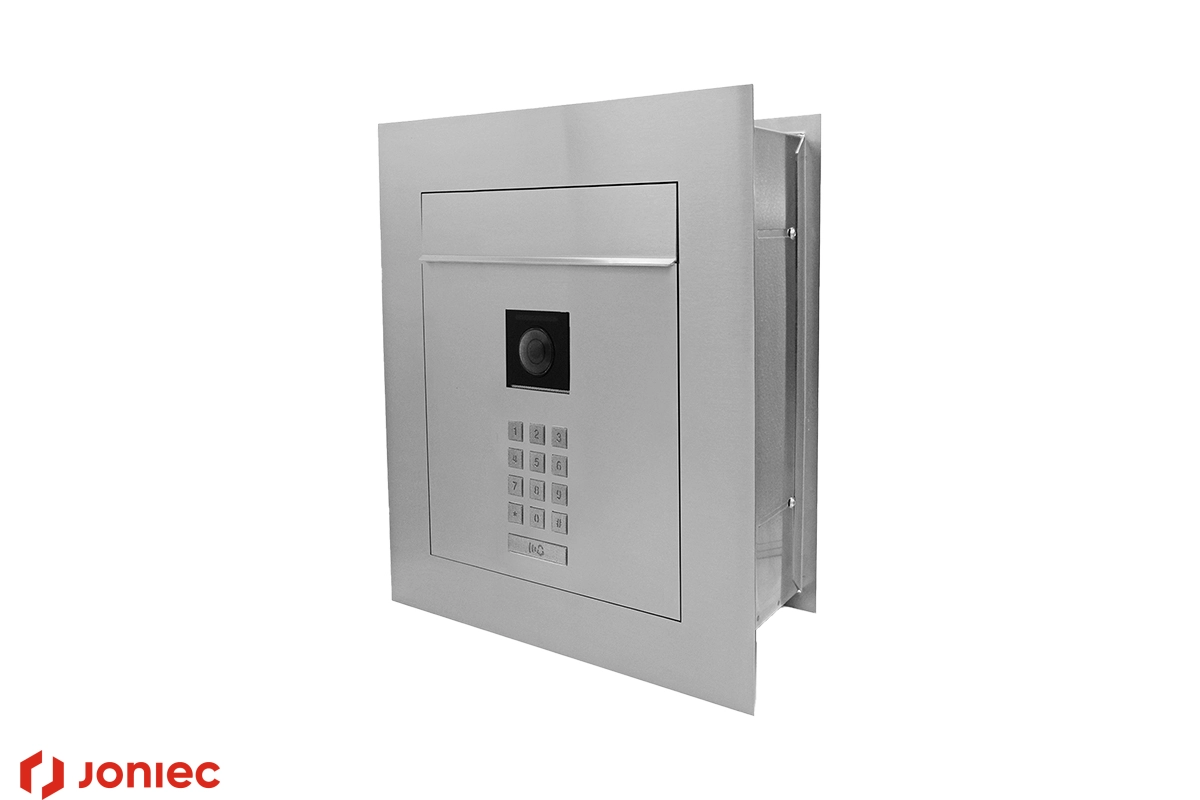

SMVM X front dimensions: 38,5 x 28,5 cm

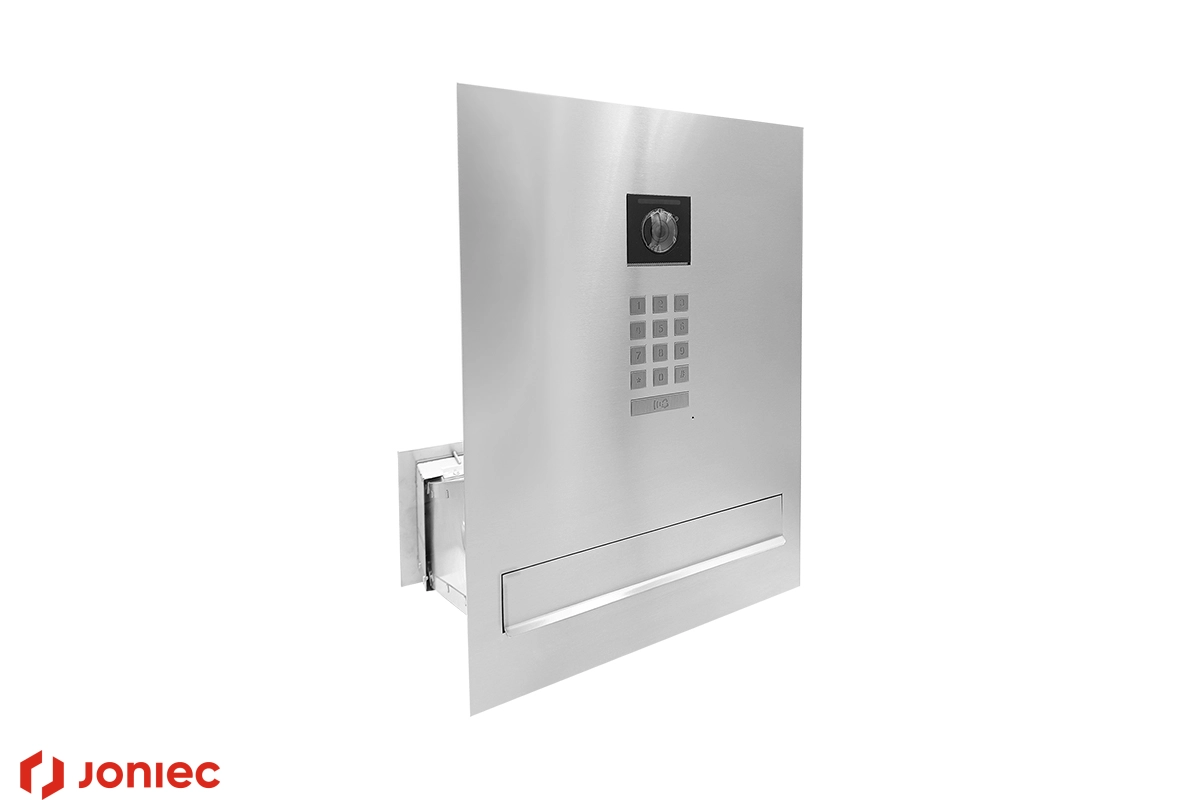

SMVM X RA front dimensions: 38,4 x 34,7 cm Small boxes are designed for installation in fence posts or walls with a depth of 19 to 25.5 cm. The box pocket is a two-piece, sliding element used as a mail container, the depth of which can be freely adjusted within the available range to fit the wall. All boxes are suitable for C4 letters (229 x 324 mm).
The front panel has a built-in analogue gate station with a mechanical keypad, which acts as a combination lock allowing the gate to be opened by entering a code.
Additional access control is provided by a built-in 2Mpx video camera with a wide-angle lens for accurate monitoring of the entrance area. Infrared LED lights ensure excellent visibility even after dark. The VIDOS X mobile application ensures convenient operation of the device from anywhere.
The rear panel is equipped with a lockable door with a window that allows you to check the contents without opening it.
The depth of the box can be increased by using universal stainless steel inserts between the two parts of the pocket (up to 3 pieces).
-2.png)
The wide range of colours in the series includes colours such as: INOX (brushed stainless steel), RAL 7016 (anthracite), RAL 7021 (graphite), RAL 8019 (dark brown), RAL 7048 (pearl) and RAL 9005 (black), allows you to find the perfect match for any fencing system.
The set includes:
- letterbox with mechanical keypad - 1 pc
- monitor in the selected colour (M11X-W - white or M11X-B - black) - 1 pc
- DIN P15/1116 power supply - 1 pc
- set of keys (2 pcs)
- cover (located on the property side around the door)
When installing the box on fences with roofs without a drip edge, we recommend installing a universal roof directly above the box door.
Specification
| Maximum letter size | C4 (229 x 324 mm) |
| Gateway model | VIDOS S14D |
| Camera viewing angle | 130° |
| Camera resolution | 2 Mpx |
| Number of relay outputs | 2 |
| Monitor diagonal | 7" |
| Monitor resolution | 1024 x 600 px |
| Supported languages | Polish, English, German, Ukrainian |
| Operation via application | Yes (VIDOS X) |
Large letterboxes
Available models

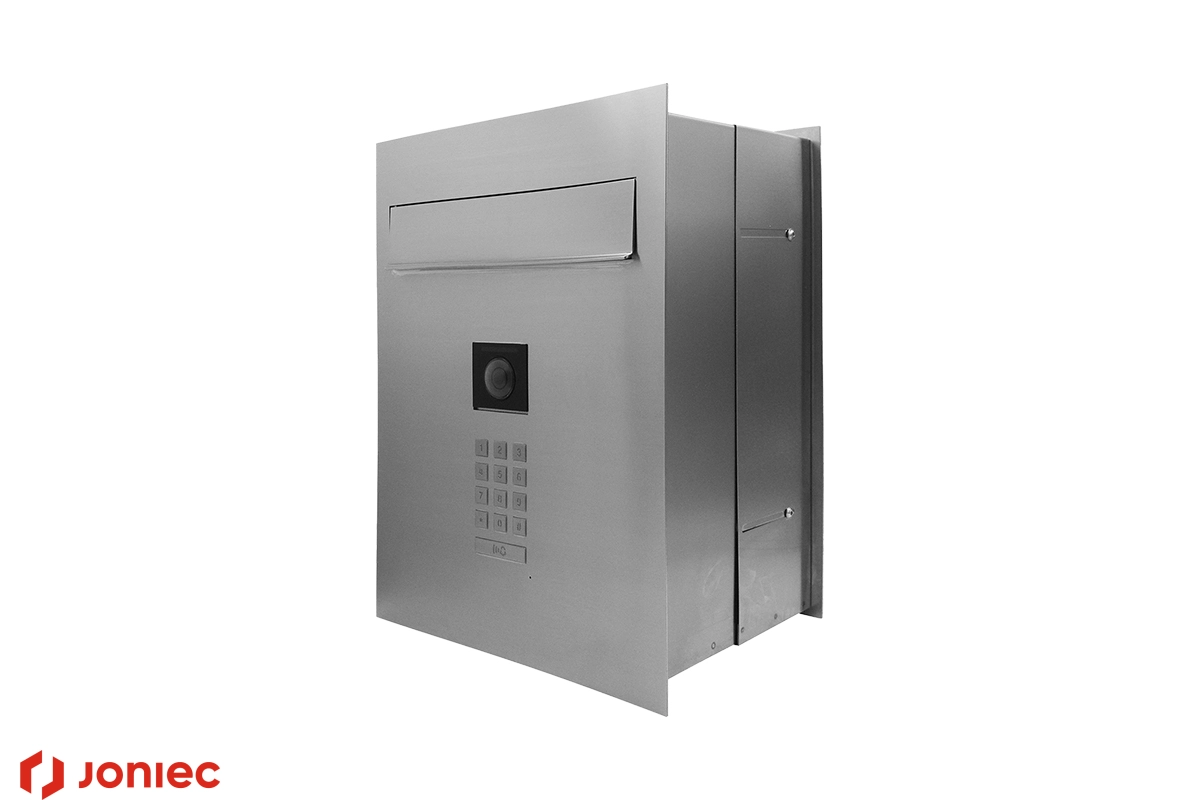

SDVM X front dimensions: 38,5 x 28,5 cm Large boxes are designed for installation in fence posts or walls with a depth of 26 to 41 cm. The box pocket is a two-piece, sliding element used as a mail container, the depth of which can be freely adjusted within the available range to fit the wall. All boxes are adapted to C4 letters (229 x 324 mm).
The front panel has a built-in gate station operating in analogue technology with a mechanical keypad, which acts as a combination lock allowing the gate to be opened by entering a code.
Additional access control is provided by a built-in 2Mpx video camera with a wide-angle lens for accurate monitoring of the entrance area. Infrared LED lights ensure excellent visibility even after dark. The VIDOS X mobile application ensures convenient operation of the device from anywhere.
The rear panel is equipped with a lockable door with a window that allows you to check the contents without opening it.
The wide range of colours in the series includes colours such as: INOX (brushed stainless steel), RAL 7016 (anthracite), RAL 7021 (graphite), RAL 8019 (dark brown), RAL 7048 (pearl) and RAL 9005 (black), allows you to find the perfect match for any fencing system.
The set includes:
- letterbox with mechanical keypad - 1 pc
- monitor in the selected colour (M11X-W - white or M11X-B - black) - 1 pc
- DIN P15/1116 power supply - 1 pc
- set of keys (2 pcs)
- cover (located on the property side around the door)
When installing the box on fences with roofs without a drip edge, we recommend installing a universal roof directly above the box door.
Specification
| Maximum letter size | C4 (229 x 324 mm) |
| Gateway model | VIDOS S14D |
| Camera viewing angle | 130° |
| Camera resolution | 2 Mpx |
| Number of relay outputs | 2 |
| Monitor diagonal | 7" |
| Monitor resolution | 1024 x 600 px |
| Supported languages | Polish, English, German, Ukrainian |
| Operation via application | Yes (VIDOS X) |
Monitors for AHD/WIFI boxes
Available monitors

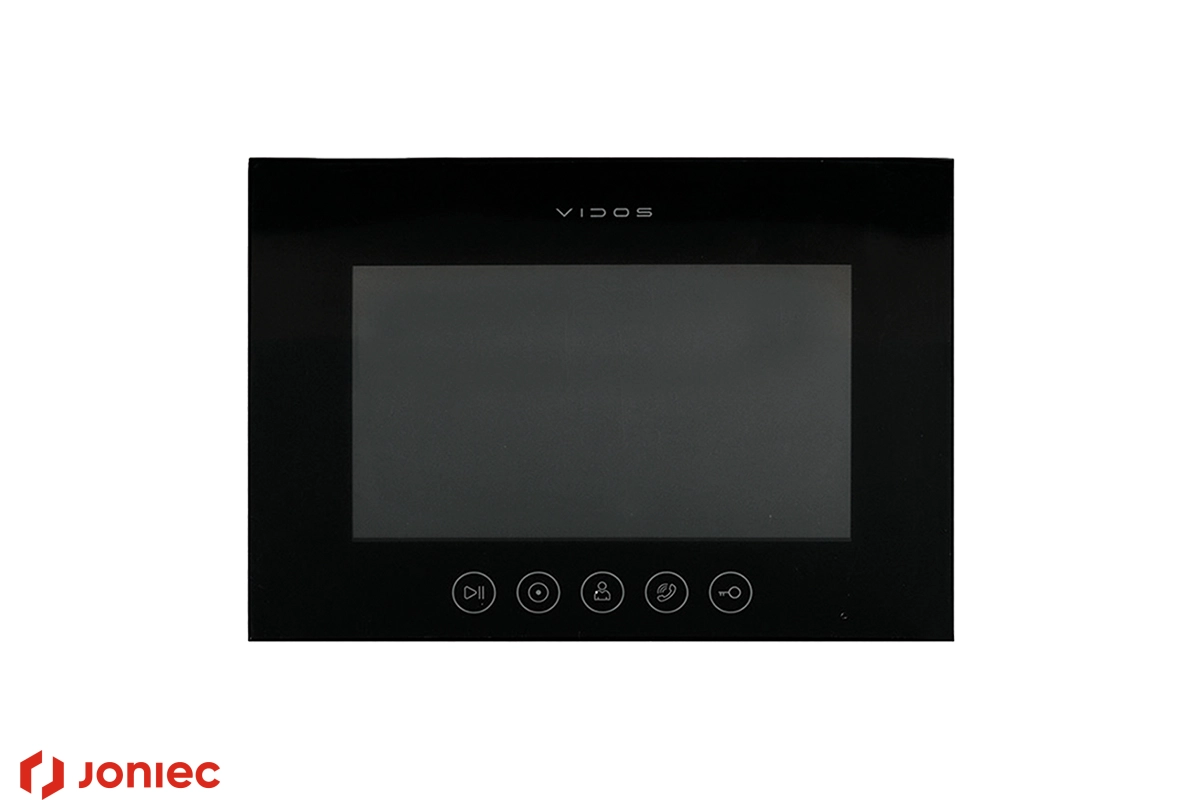

M11X monitor, black

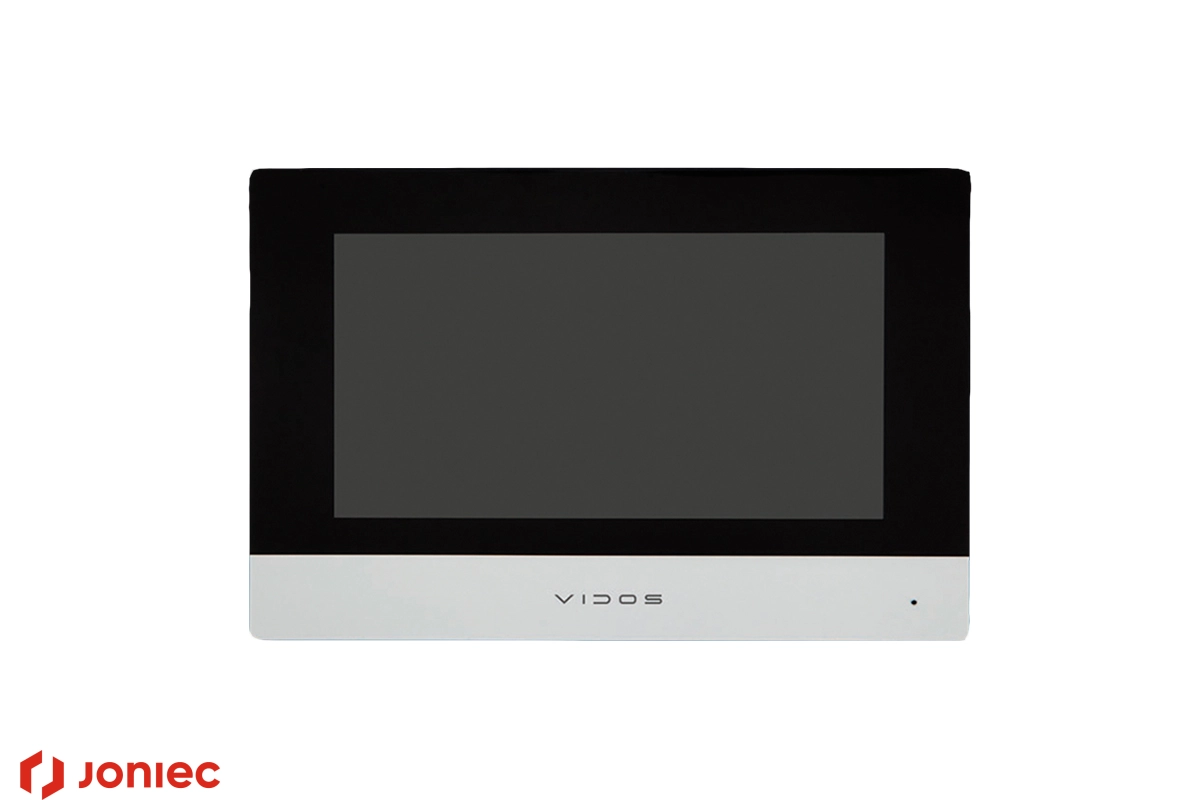

M11X monitor, white The device offers touch-sensitive function buttons, a 7" LCD display with a resolution of 1024x600 px. The monitor supports 2 door stations and 2 CCTV cameras and allows you to control an electric door opener. The device is equipped with built-in internal memory and supports microSD cards for archiving photos and recordings from cameras and gate stations. The device offers a number of practical system personalisation features. These include motion detection, and in the M11W-X / M11B-X model, thanks to the built-in Wi-Fi module, it is possible to transfer calls to a mobile device with the Vidos X application.
