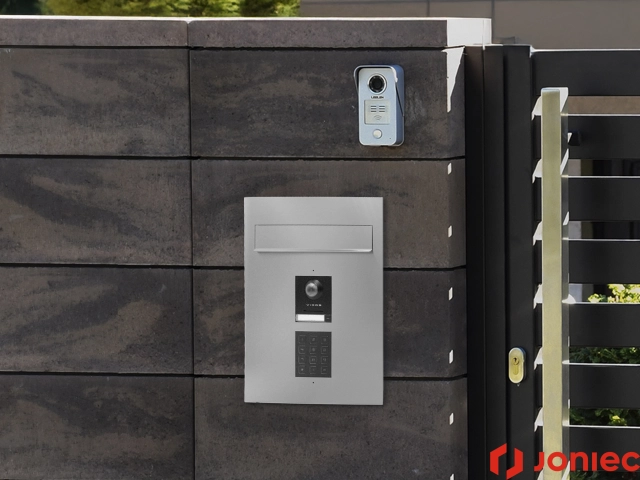

ESLetterboxes with IP video intercom
A letterbox with a digital IP video intercom is a solution offering extensive expansion and configuration options to meet the needs of even the most demanding users. Thanks to the ability to operate it from an app, the necessary functions can be accessed from anywhere with internet access.
Small letterboxes
Available models

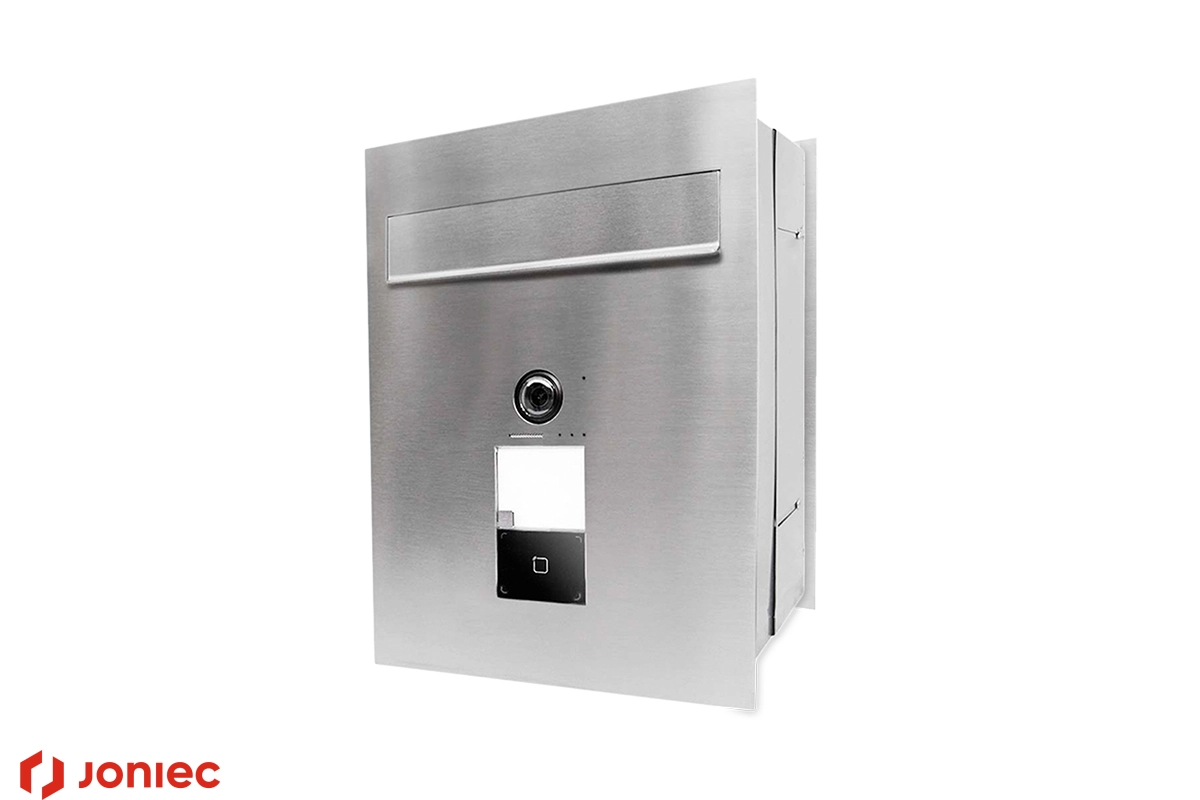

SMVM IP with RFID reader front dimensions: 38,5 x 28,5 cm

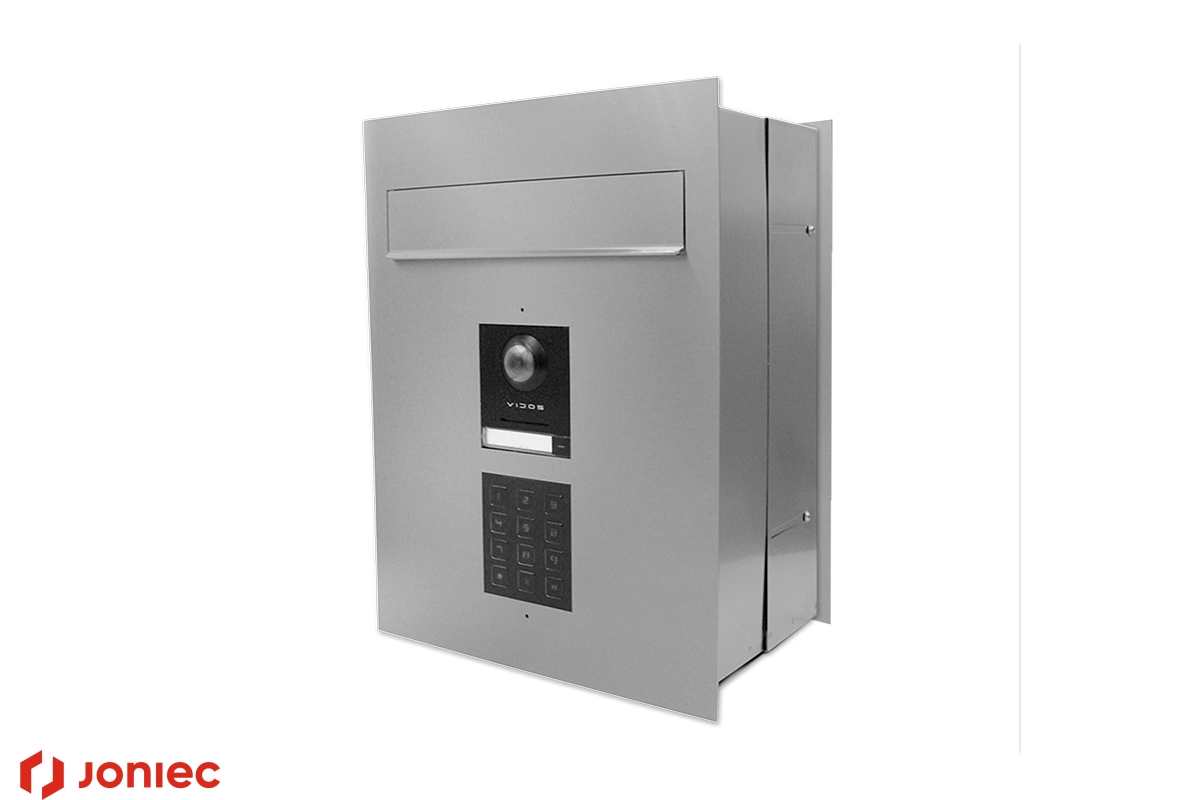

SMVM IP with mechanical keyboard front dimensions: 38,5 x 28,5 cm Small boxes are designed for installation in fence posts or walls with a depth of 19 to 25.5 cm. The box pocket is a two-piece, sliding element used as a mail container, the depth of which can be freely adjusted within the available range to fit the wall. All boxes are designed for C4 letters (229 x 324 mm).
A digital gate station is built into the front panel. Versions with a mechanical keypad or RFID proximity reader are available.
The rear panel is equipped with a lockable door with a window that allows you to check the contents without opening it.
The depth of the box can be increased by using universal stainless steel inserts between the two parts of the pocket (up to 3 pieces).
-2.png)
When installing the box on fences with roofs without a drip edge, we recommend installing a universal roof directly above the box door.
Specification
| SMVM IP Mechanical Keyboard | SMVM IP RFID reader | |
| Gateway model |
keyboard module - A2000-D camera module - A2000-G | VIDOS S2401-N |
| Camera viewing angle | approx. 180° horizontally and 96° vertically | 129° |
| Camera resolution | 2 Mpx | 2 Mpx |
| Monitor diagonal | 7" | 7" |
Monitor resolution | 1024 x 600 px | 1024 x 600 px |
| Number of relay outputs | 1 (expandable to 2 with the B31 module) | 2 |
| Supported languages | Polish, English, Bulgarian, Croatian, Czech, French, Greek, Spanish, Dutch, German, Portuguese, Romanian, Serbian, Hungarian, Italian | Polish, English, Bulgarian, Croatian, Czech, French, Greek, Spanish, Dutch, German, Portuguese, Romanian, Serbian, Hungarian, Italian |
| Number of supported IP cameras | 16 | 16 |
| Operation via the app | Yes (VIDOS ONE) | Yes (VIDOS ONE) |
| The set includes: | - letterbox - 1 pc - A2000-D numeric keypad module - 1 pc - A2000-G camera module (camera lens) - 1 pc - D2200-2 flush-mounted box - 1 pc - monitor in the selected color (M2010W - white or M2010 - black-silver) - 1 pc - PS42/60 switch (4 ports) - 1 pc - set of keys (2 pcs) - cover (located on the property side around the door) | - letterbox with built-in RFID reader - 1 pc - monitor in the selected color (M2010W - white or M2010 - black-silver) - 1 pc - PS42/60 switch (4 ports) - 1 pc - set of keys (2 pcs) - MIFARE RFID card - 2 pcs - cover (located on the property side around the door) |
Large letterboxes
Available models

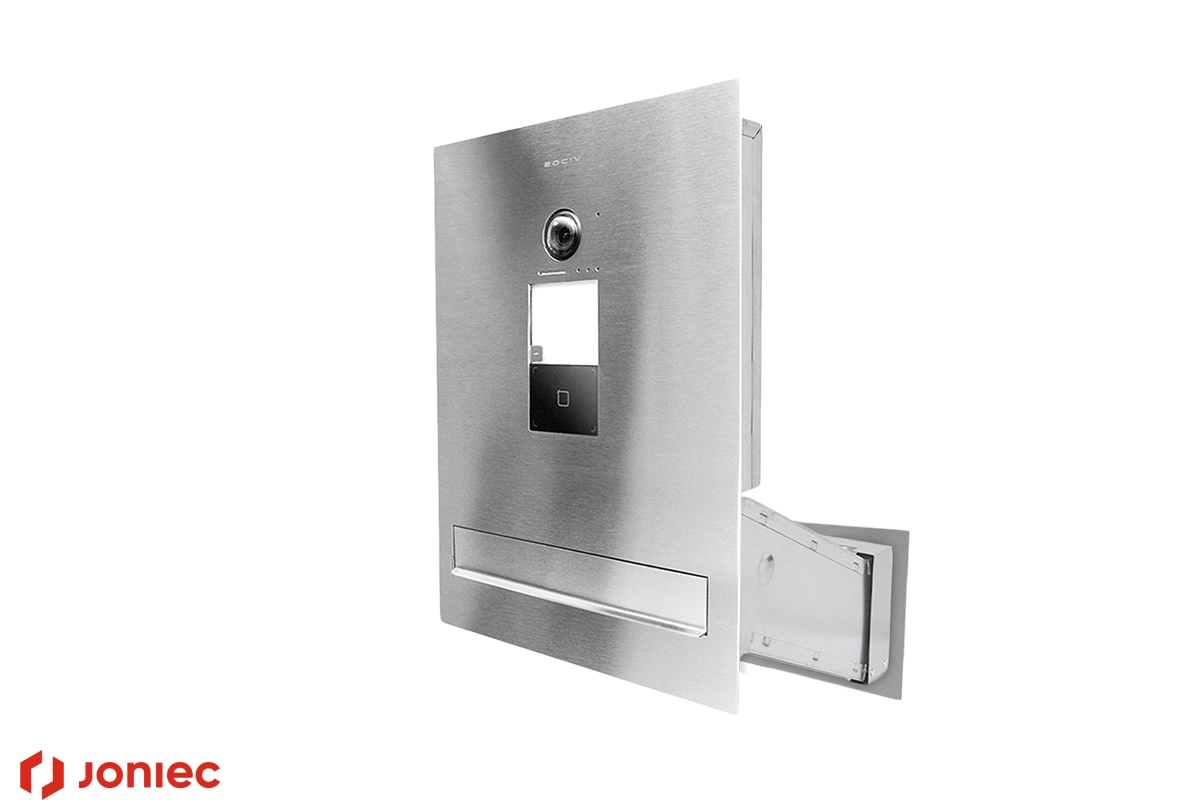

SDVM IP with RFID reader front dimensions: 38,5 x 28,5 cm

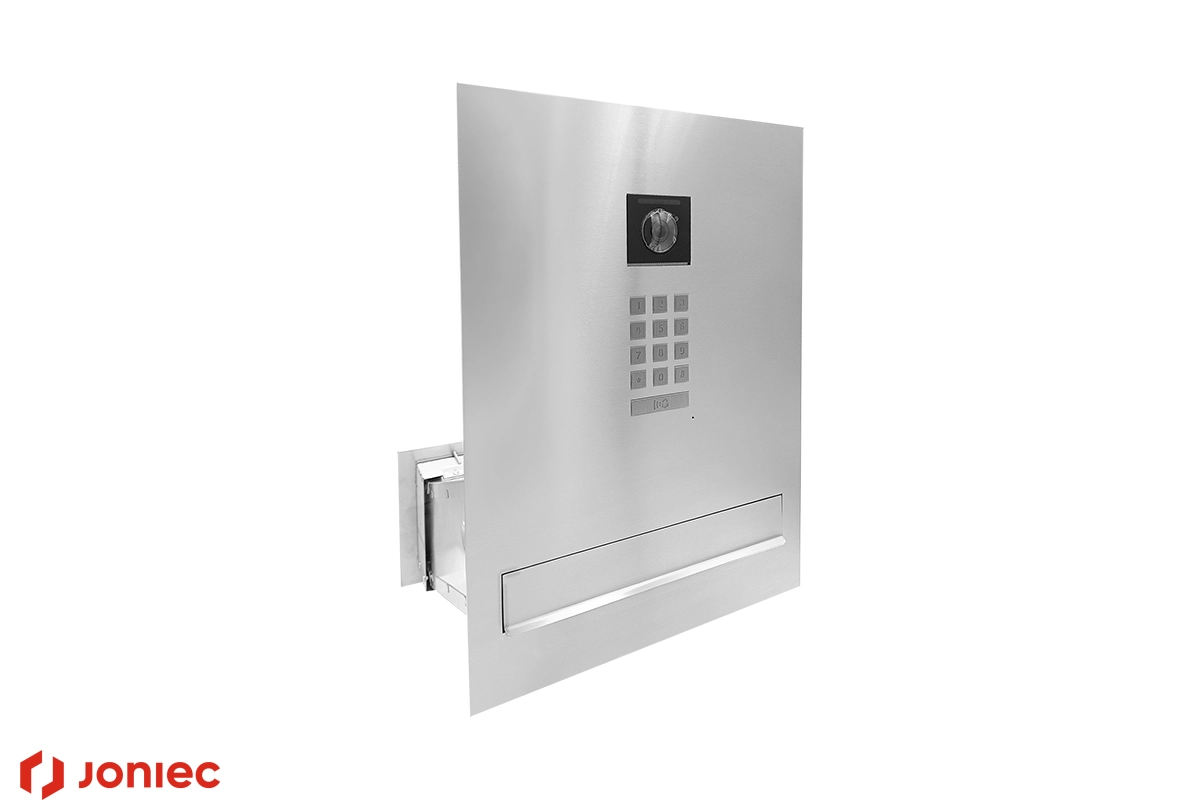

SDVM IP with mechanical keyboard front dimensions: 38,5 x 28,5 cm Large boxes are designed for installation in fence posts or walls with a depth of 26 to 41 cm. The box pocket is a two-piece, sliding element used as a mail container, the depth of which can be freely adjusted within the available range to fit the wall. All boxes are suitable for C4 letters (229 x 324 mm).
A digital gate station is built into the front panel. Versions with a mechanical keypad or RFID proximity reader are available.
The rear panel is equipped with a lockable door with a window that allows you to check the contents without opening it.
When installing the box on fences with roofs without a drip cap, we recommend installing a universal roof directly above the box door.
Specification
| SDVM IP Mechanical Keyboard | SDVM IP RFID reader | |
| Gateway model |
keyboard module - A2000-D camera module - A2000-G | VIDOS S2401-N |
| Camera viewing angle | approx. 180° horizontally and 96° vertically | 129° |
| Camera resolution | 2 Mpx | 2 Mpx |
| Monitor diagonal | 7" | 7" |
Monitor resolution | 1024 x 600 px | 1024 x 600 px |
| Number of relay outputs | 1 (expandable to 2 with the B31 module) | 2 |
| Supported languages | Polish, English, Bulgarian, Croatian, Czech, French, Greek, Spanish, Dutch, German, Portuguese, Romanian, Serbian, Hungarian, Italian | Polish, English, Bulgarian, Croatian, Czech, French, Greek, Spanish, Dutch, German, Portuguese, Romanian, Serbian, Hungarian, Italian |
| Number of supported IP cameras | 16 | 16 |
| Operation via the app | Yes (VIDOS ONE) | Yes (VIDOS ONE) |
| The set includes: |
- letterbox - 1 pc - A2000-D numeric keypad module - 1 pc - A2000-G camera module (camera eye) - 1 pc - D2200-2 flush-mounted box - 1 pc - monitor in the selected color (M2010W - white or M2010 - black-silver) - 1 pc - PS42/60 switch (4 ports) - 1 pc - set of keys (2 pcs) - cover (located on the property side around the door) |
- letterbox with built-in RFID reader - 1 pc - monitor in the selected color (M2010W - white or M2010 - black-silver) - 1 pc - PS42/60 switch (4 ports) - 1 pc - set of keys (2 pcs) - MIFARE RFID card - 2 pcs - cover (located on the property side around the door) |
Monitors for IP boxes
Available monitors

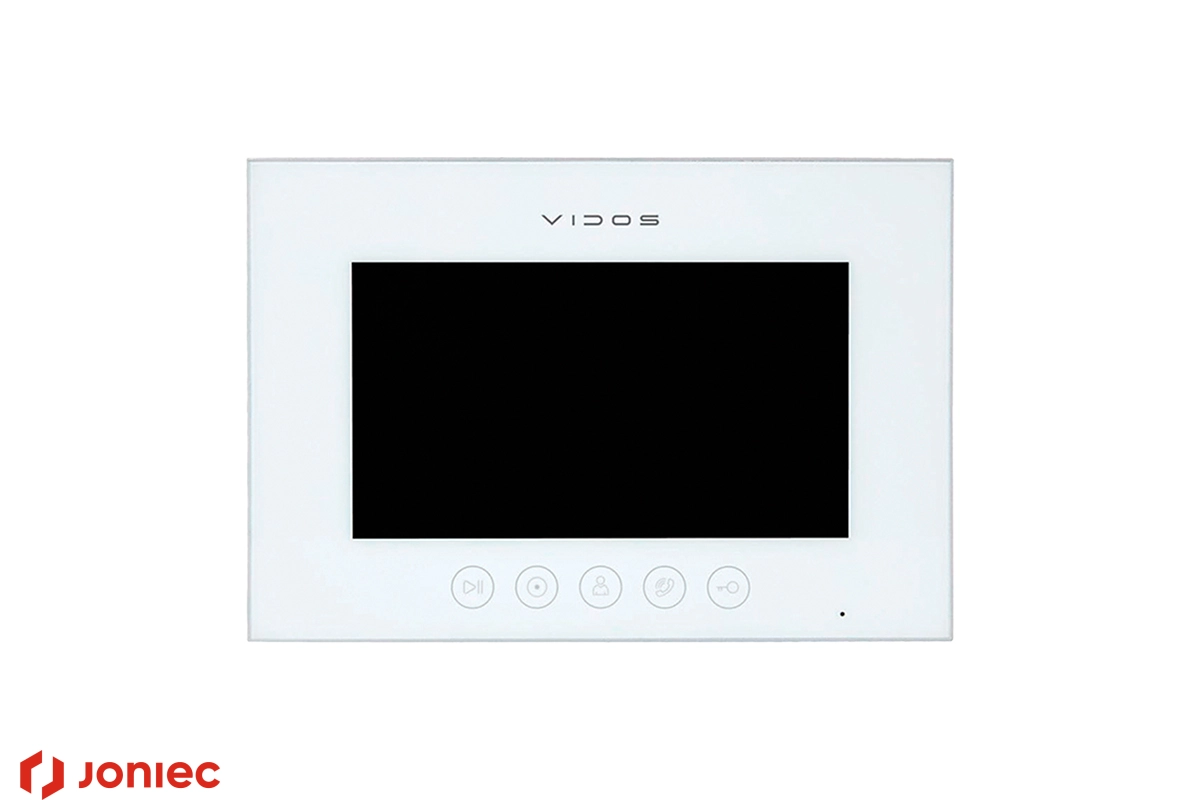

M2010 monitor, white

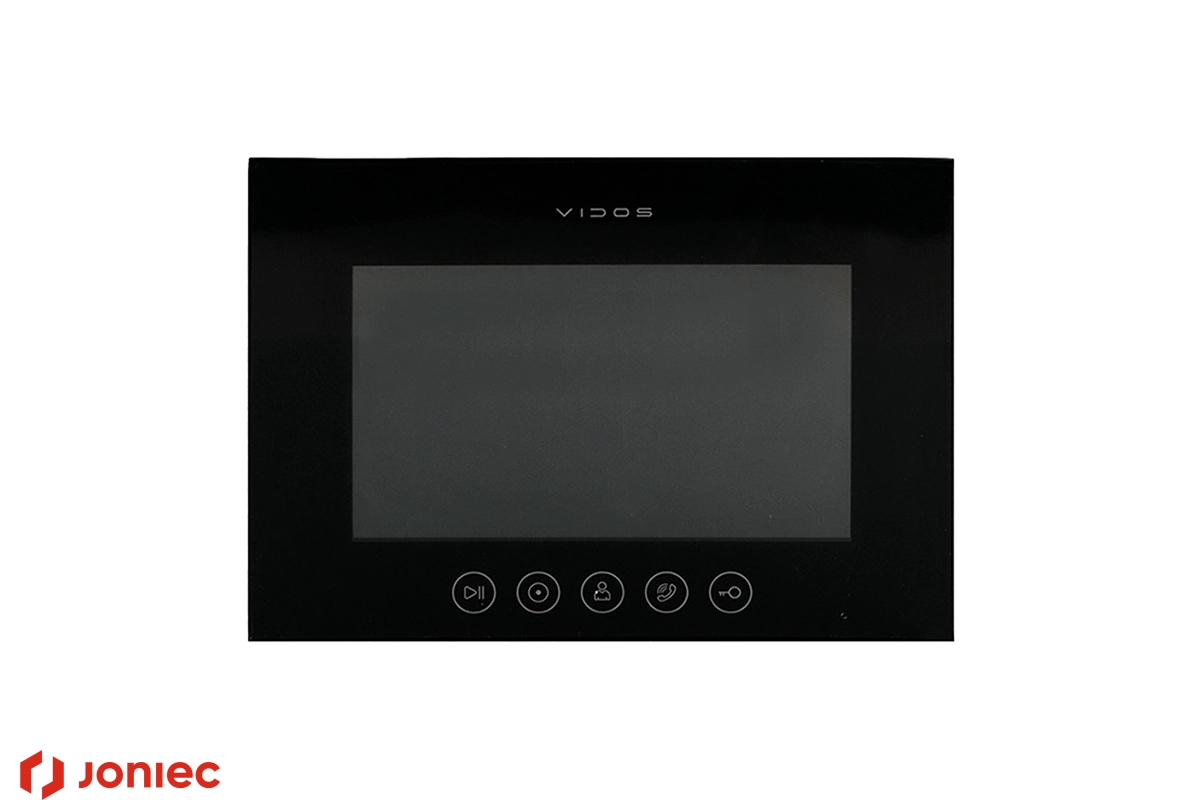

M2010 monitor, black and silver The timeless, modest design will suit almost every taste and fits perfectly into modern interiors. The monitor enables communication with the gate station, viewing images from all IP cameras in the system, and managing alarm sensors integrated with the video intercom. The multimedia monitor is equipped with a 7" high-resolution touch screen. The multilingual, intuitive on-screen menu allows you to manage the entire system from one place.
The built-in microSD card slot allows you to save images of visitors and camera views, which are available without calling from the gate station. The monitor is compatible and fully configurable using the VIDOS ONE PC programme. Compatible with the VIDOS ONE mobile ap
