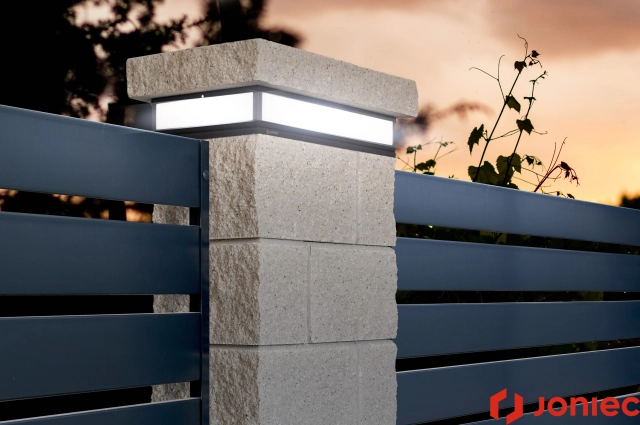

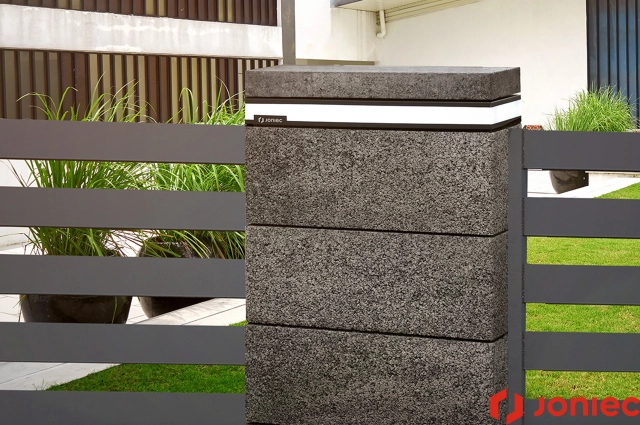

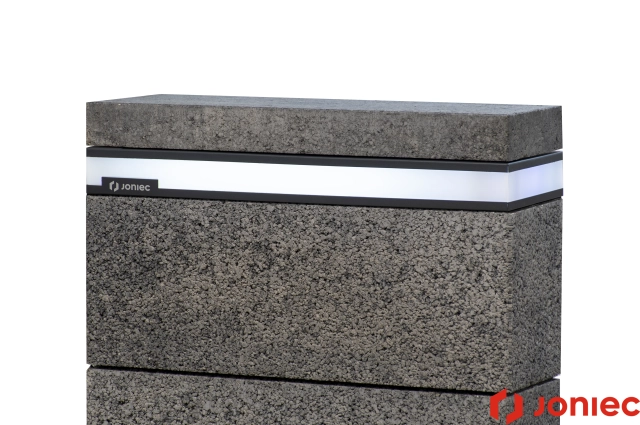

ESLED BLOCK lamps
LED BLOCK lamps are a new solution designed for people who value modernity and practicality. The wide range of models and sizes allows the lamps to be adapted to almost any type of fence.
Product description
The LED BLOCK series is a modern and elegant solution for those who value aesthetics and functionality. The lamps are available in five sizes to match JONIEC® blocks, perfectly complementing the posts.

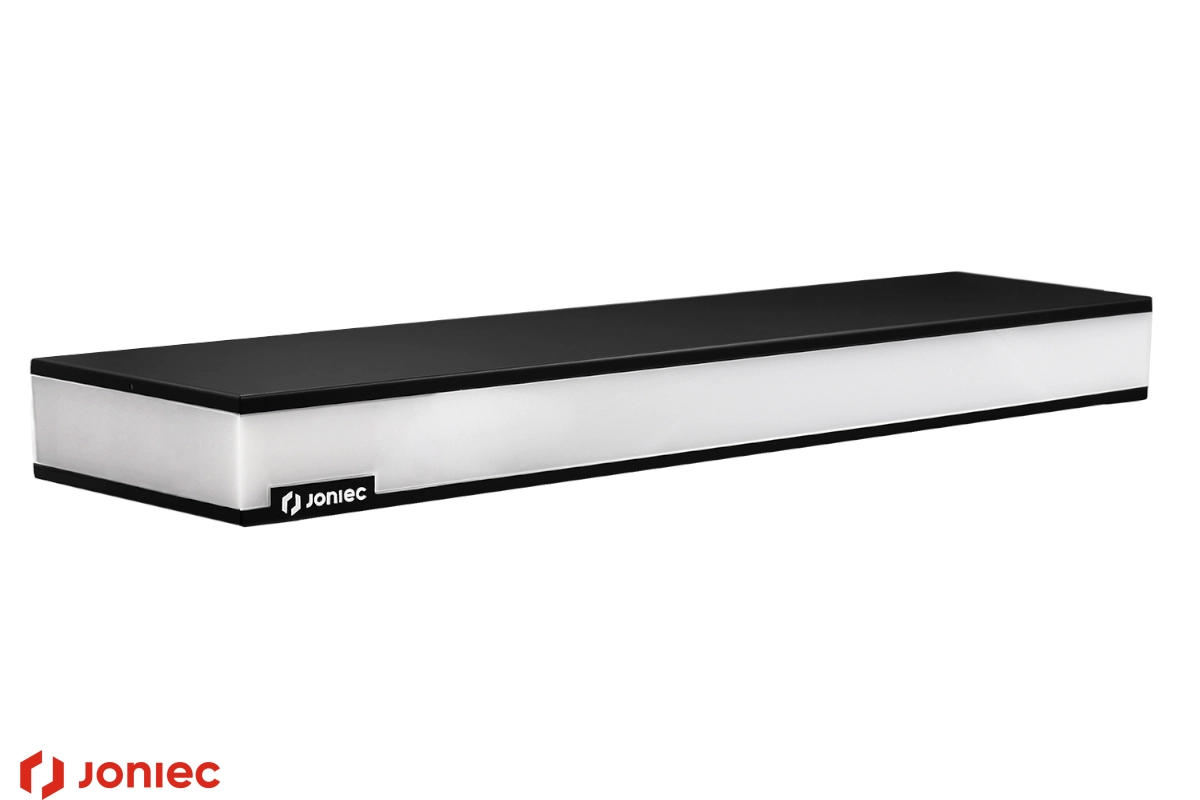

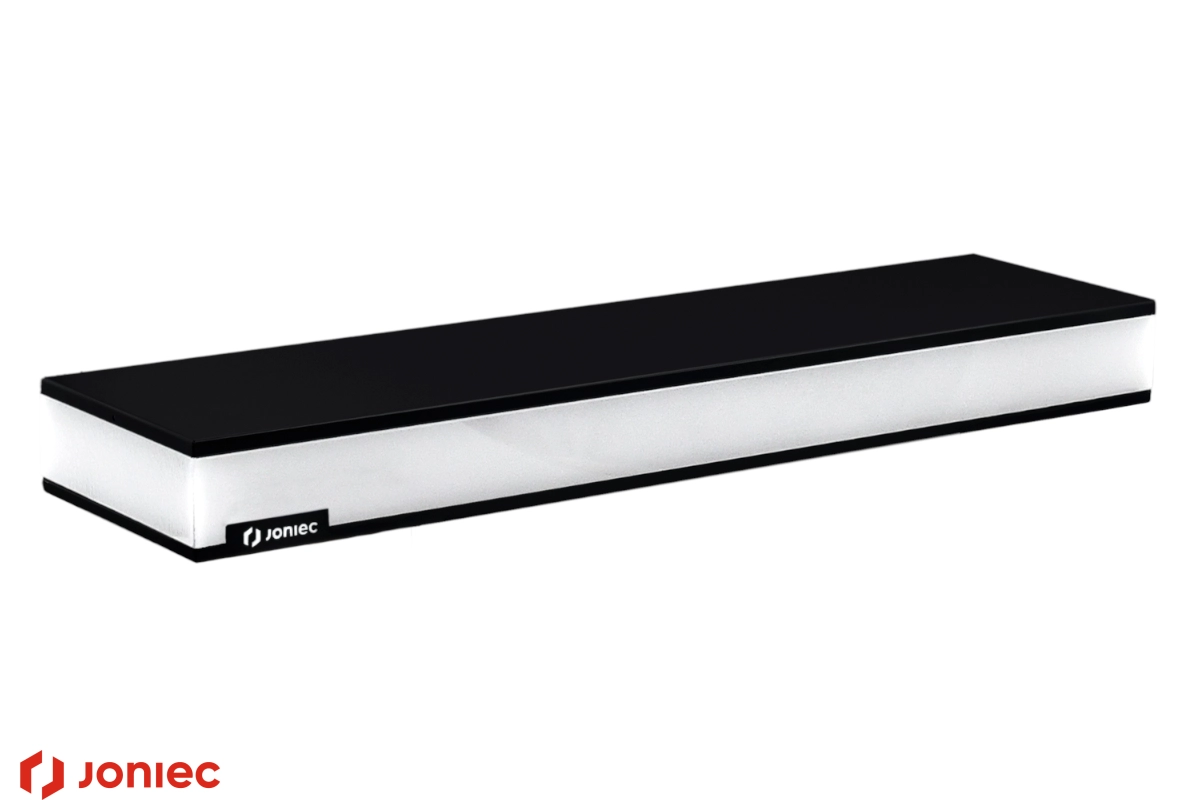

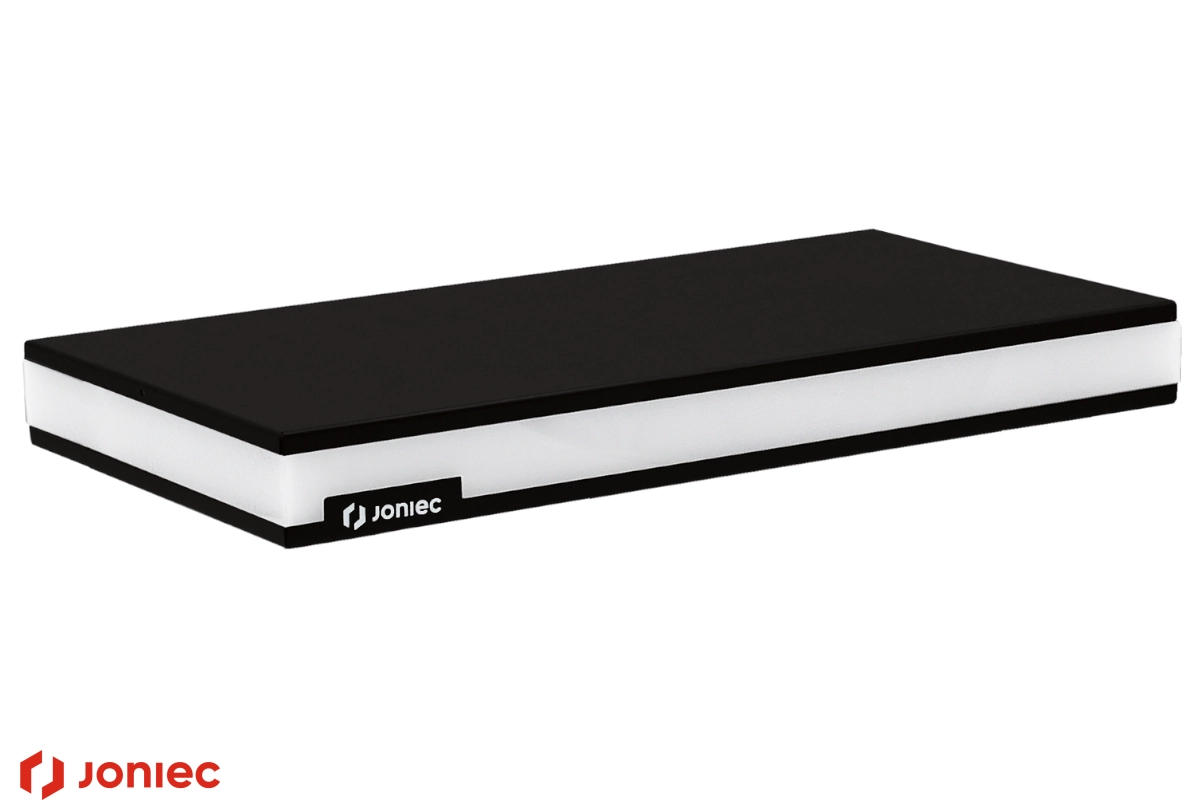

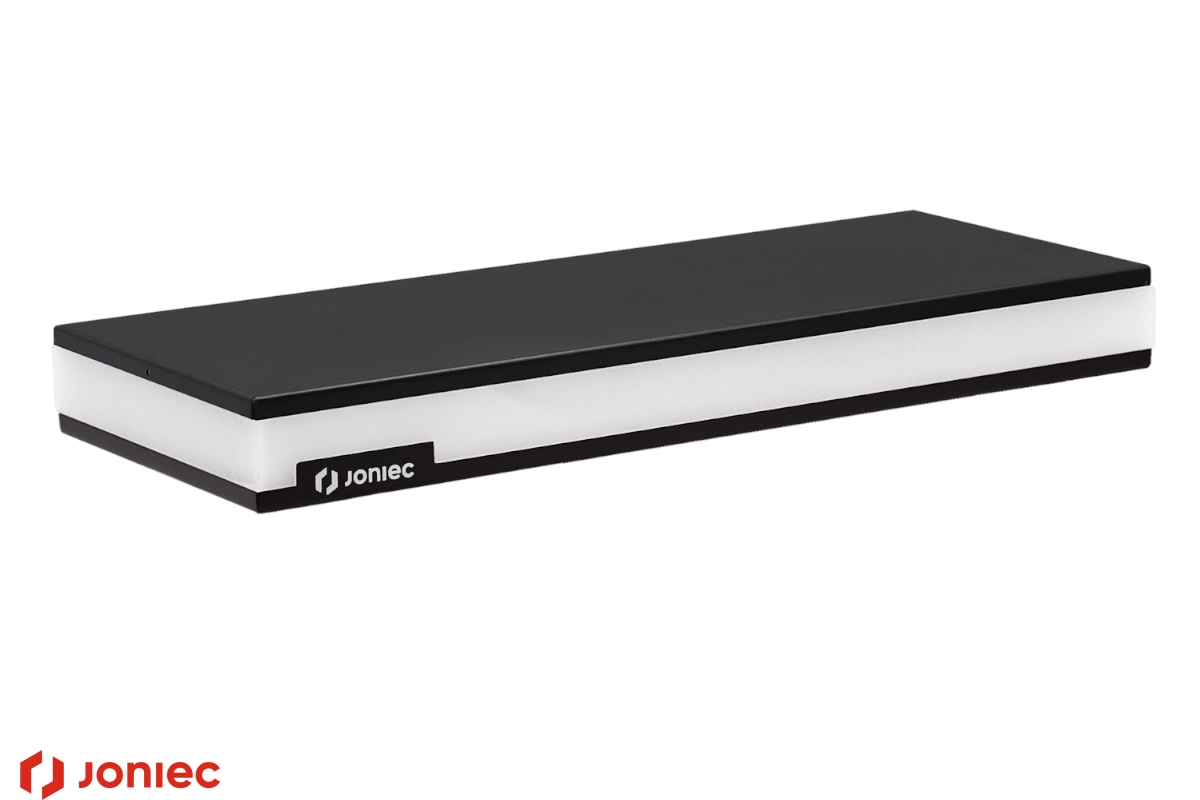

Available dimensions
20 x 50,4 x 5 cm
28 x 50,4 x 5 cm
19,5 x 75,6 x 7 cm
28 x 75,6 x 7 cm

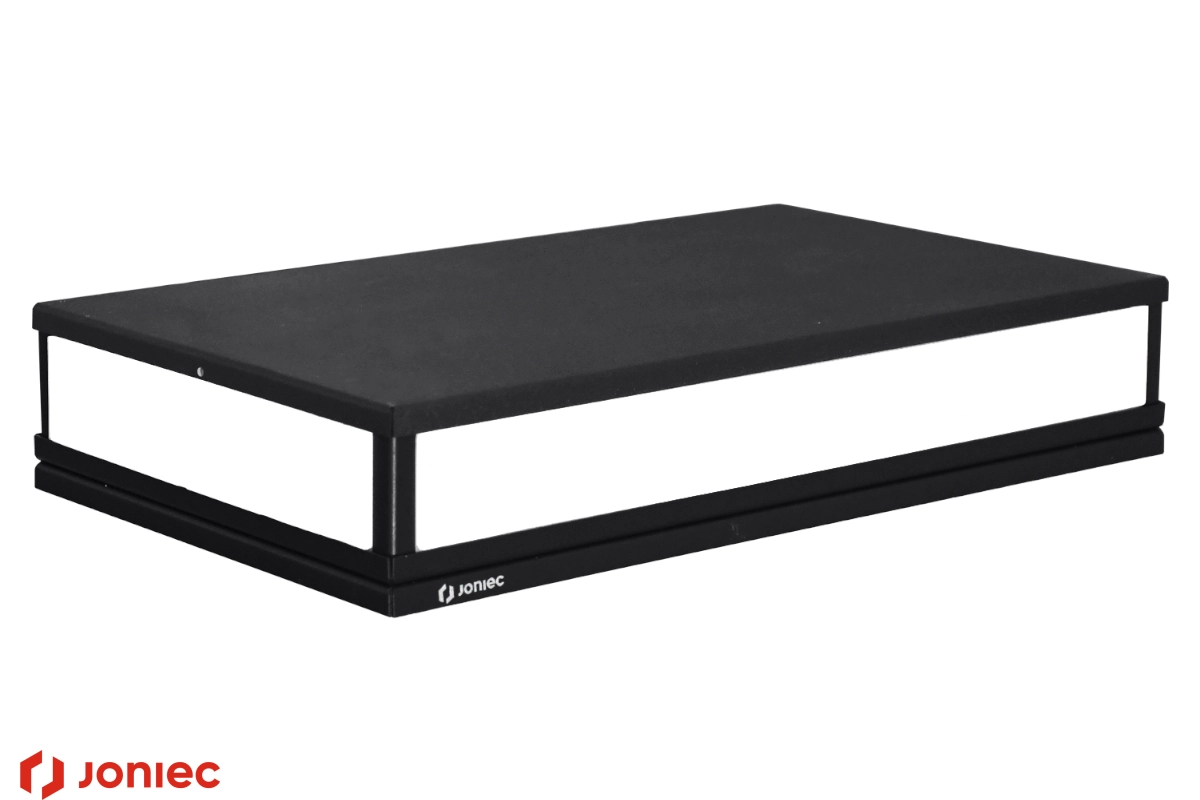

22 x 38 x 6 cm The Multi version uses white light with a temperature of 6500K (cold) to illuminate the fence and the space around it, while also serving as a warning by flashing orange light when the gate motor is in operation.
The second available variant is Light, equipped only with white light elements illuminating the fence.
All lamps from the LED BLOCK family can be powered by 12/24V DC or 230V AC.
The wide range of colours in the series includes colours such as: INOX (brushed stainless steel), RAL 7016 (anthracite), RAL 7021 (graphite), RAL 8019 (dark brown) and RAL 9005 (black), allows you to find the perfect match for any fencing system.
*The LED BLOCK GORC lamp (22x38x6cm) is not available in RAL 8019.
Specification
| Power supply | 12/24 V DC or 230 V AC |
| Material | Stainless steel (Inox colour)/ Galvanised steel (RAL colours) |
| Colour temperature | 6500K (cold) |
Power consumption | Light version: 2,4 W (200x504, 280x504 i 220x380) / 5 W (195x756 i 280x756) Multi version: 7,2 W (200x504, 280x504 i 220x380) / 9,8 W (195x756 i 280x756) |
| IP protection | IP44 |
| Lifetime | 50,000 hours – white colour, 30,000 hours – orange colour |
| Twilight sensor | No |
Product advantages
- warning function* - the lamp has a built-in orange warning light that activates during operation to signal that the gate motor is working.
- adjustable warning light frequency* - the lamp has a built-in potentiometer that allows you to change the flashing frequency of the lamp.
- several lighting configuration options* - depending on the DIP switch settings, the warning light can flash, shine continuously or flash alternately with white light during operation.
- Quick and easy installation – the lamp has been designed for easy installation, ensuring that it can be fitted quickly and without any problems.
- energy-efficient LED technology – the LEDs used are characterised by low energy consumption and long operating time, making the lamp an economical and environmentally friendly source of light.
- light intensity adjustment option – the lamp has a switch that allows you to adjust the light intensity (OFF setting – 40%, ON setting – 100%).
- UV resistance – the acrylic glass shade is resistant to sunlight, which guarantees long and trouble-free use.
- wide range of colours – the lamp is available in many colours, making it easy to match the appearance of your fence.
* only available in the Multi version
Method of installation
It is best to plan the installation of the lamp during the construction of the fence. It will be necessary to prepare round or oval cables with a diameter suitable for PG7 glands (from 3.5 to 6 mm) for 12/24V DC or 230V AC power supply.Each LED BLOCK lamp has an integrated controller located on the left side of the lamp (on the logo side), which must be placed in the left chamber of the fence block. This chamber can only be filled with concrete to 40% capacity!
The prepared wiring should be fed into the lamp controller through the glands and connected to the appropriate clamp depending on the supplied voltage (the lamp has two clamps for each light colour, one for 12/24V DC and the other for 230V AC). Both colours of light, i.e. white and orange, are powered independently of each other – white from the mains or power supply in the case of 12/24V current, and orange directly from the gate motor, so before installation, check the voltage supplied by the gate motor.
After connecting and setting the desired lighting parameters, e.g. light intensity, flashing frequency, etc., stick the lamp to the block by evenly applying JONIEC® adhesive sealant to the entire upper edge of the block.
When installing two multi-lamps to one gate motor, they may operate asynchronously. In this case, adjust the flashing frequency of one of the lamps using the potentiometer located in the lamp controller.
When installing the lamp under the cap, after completing the above steps, apply JONIEC® adhesive sealant to the upper case of the lamp and press the cap lightly.
