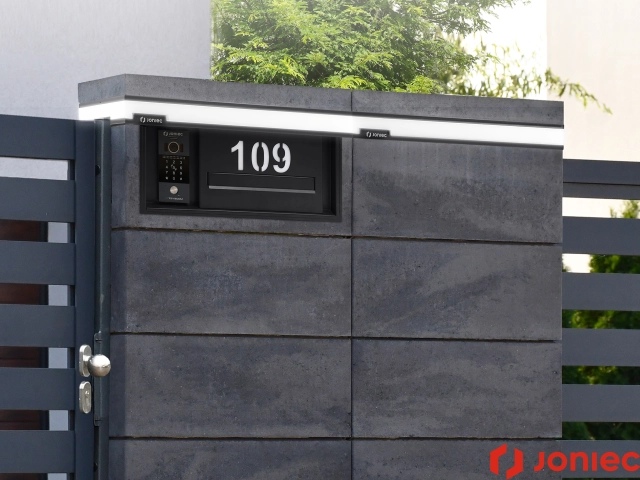

LED BLOCK Smart lamps

---

Product description

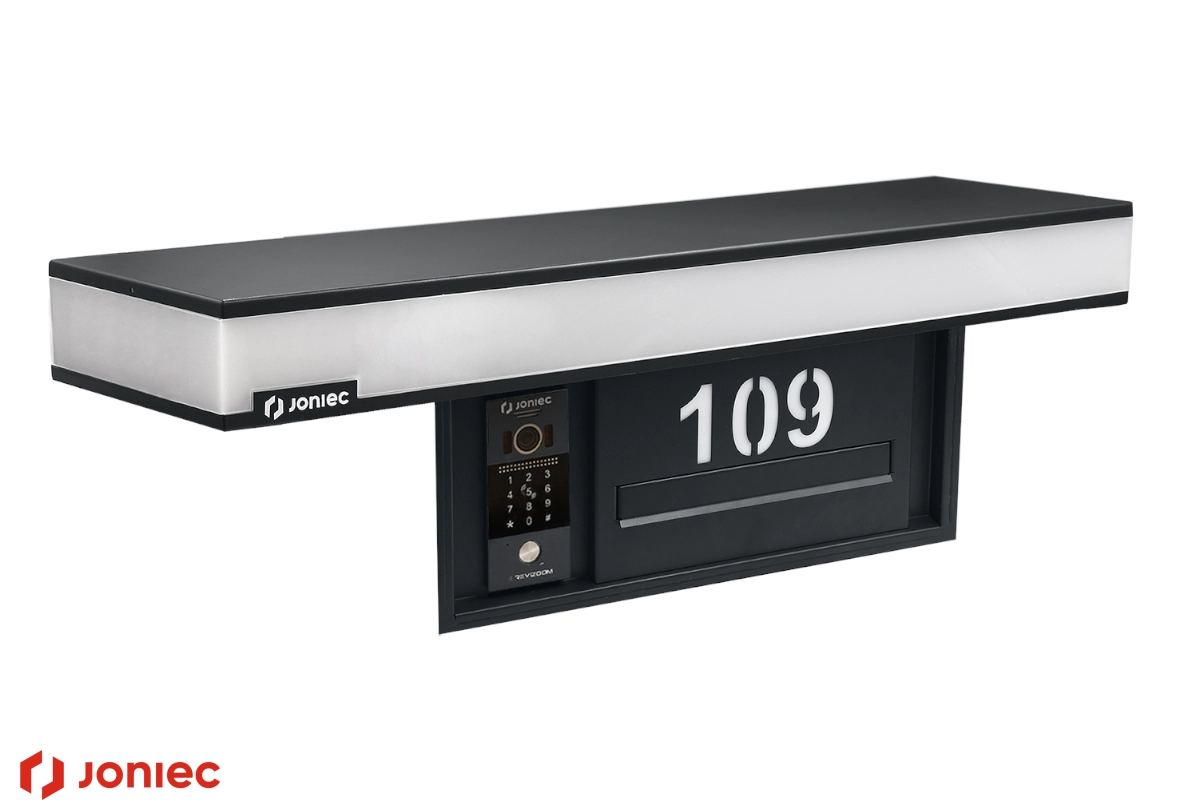

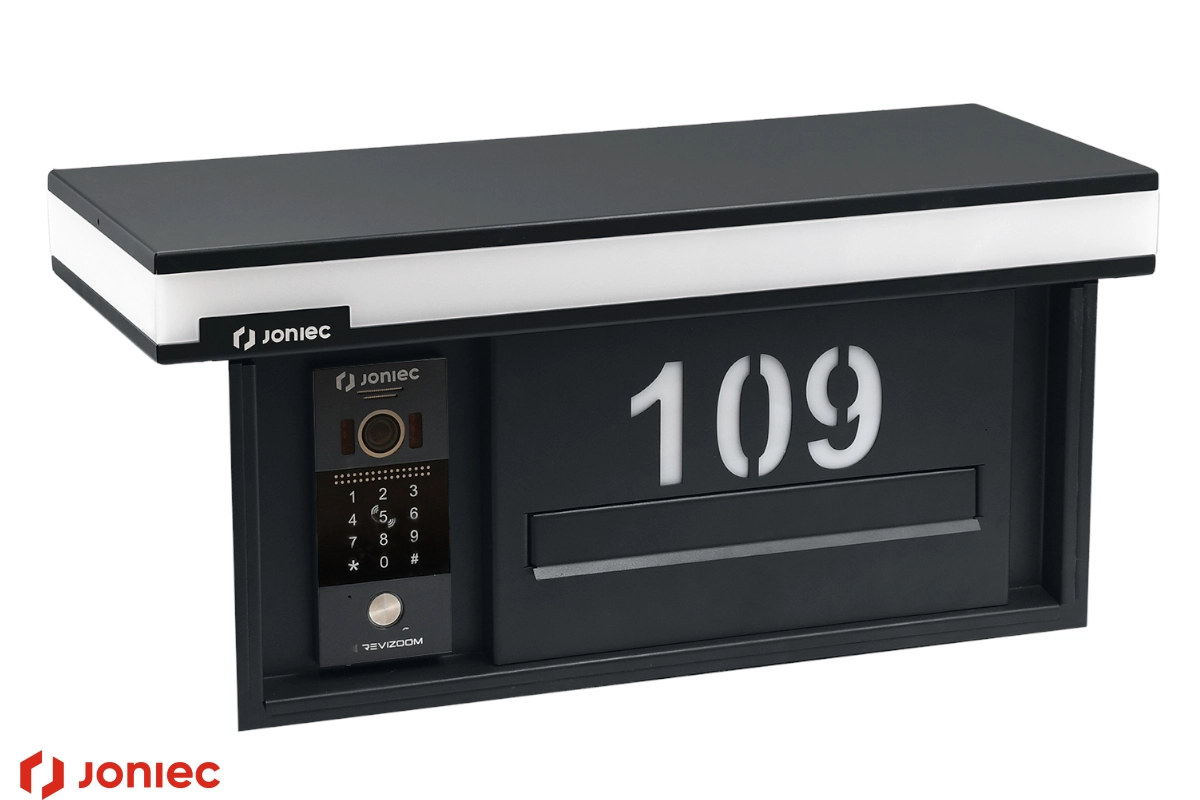

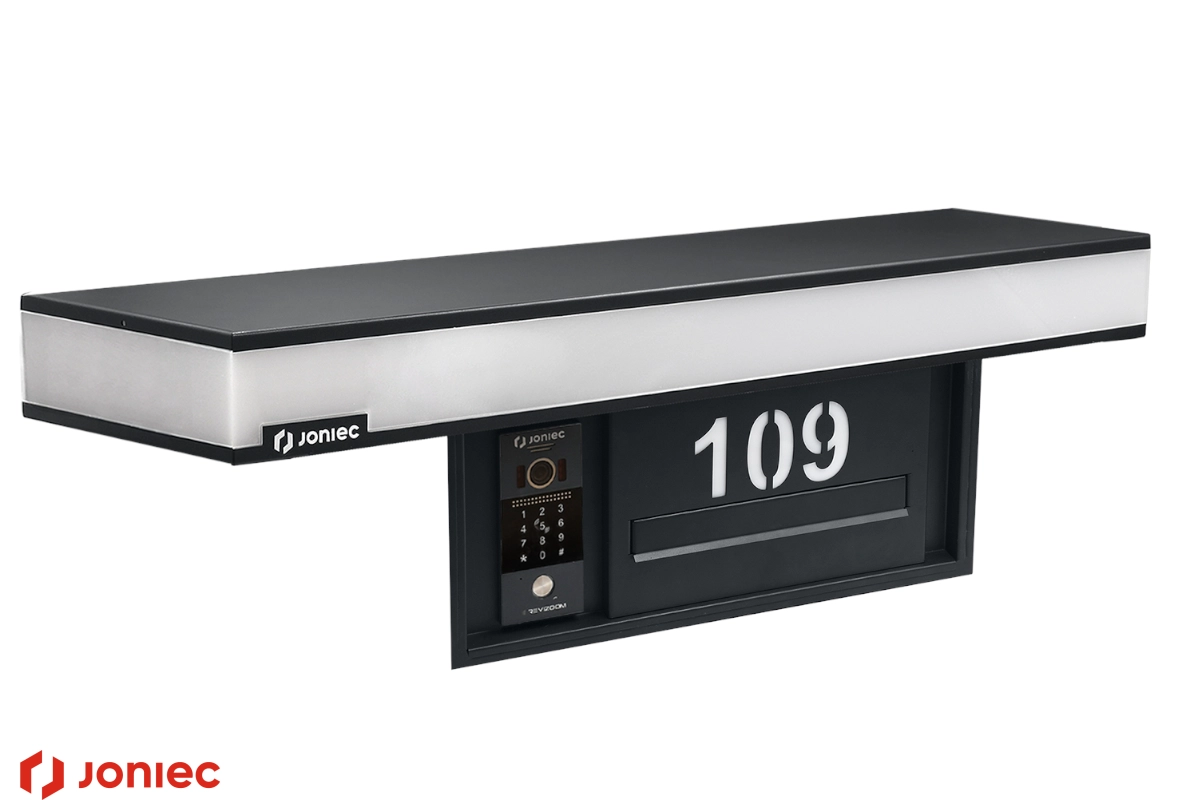

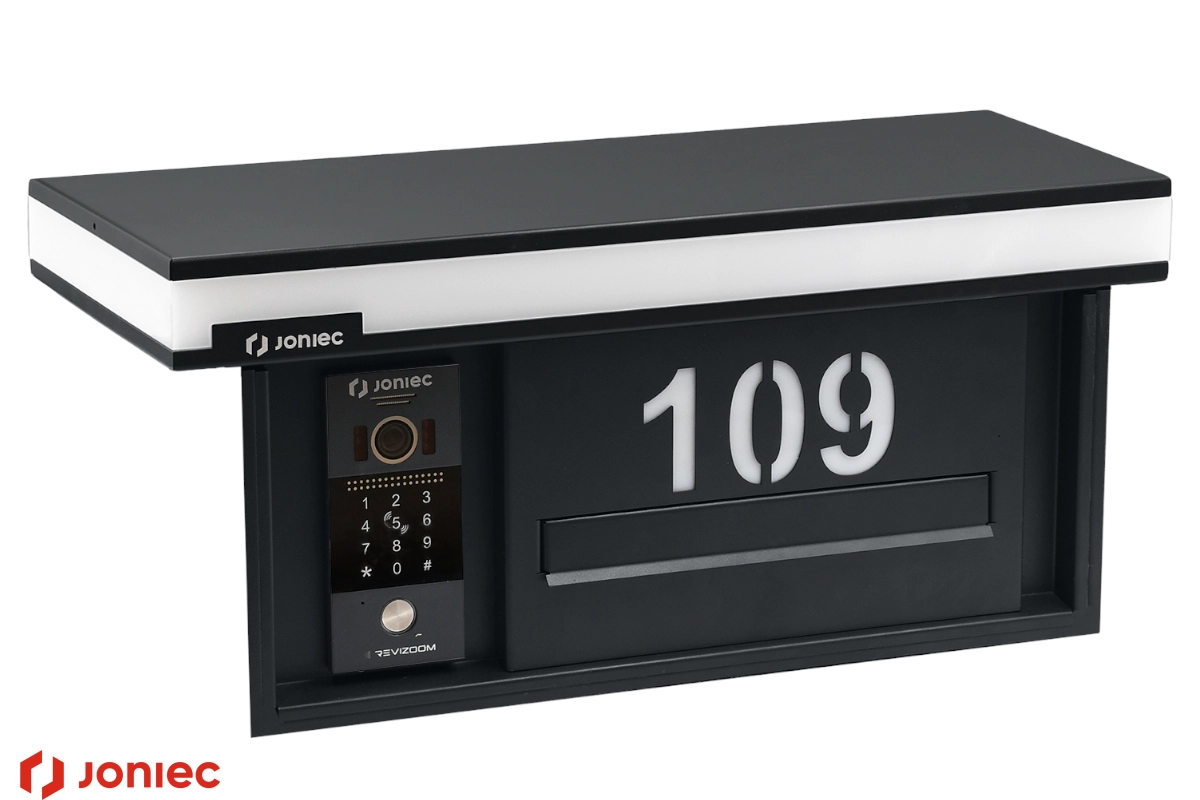

The Smart model is a comprehensive solution combining the functionality of a LED BLOCK lamp and a letterbox with a video intercom. The lamps are available in four sizes to fit JONIEC® modular blocks, perfectly matching the posts.

Available dimensions

The arrangement of letters and numbers on the address plate will depend on the number of characters. The LED BLOCK family includes Light and Multi lamps, which differ in terms of the lighting they offer.

The Light version uses white light with a temperature of 6500K (cold) to illuminate the fence and the space around it.

The second available variant is Multi, which, in addition to white, also includes orange light elements that serve as a warning when the gate motor is in operation.

All lamps from the LED BLOCK family can be powered by 12/24V DC or 230V AC.

The wide range of colours in the series includes colours such as: INOX (brushed stainless steel), RAL 7016 (anthracite), RAL 7021 (graphite), RAL 8019 (dark brown) and RAL 9005 (black), allows you to find the perfect match for any fencing system.

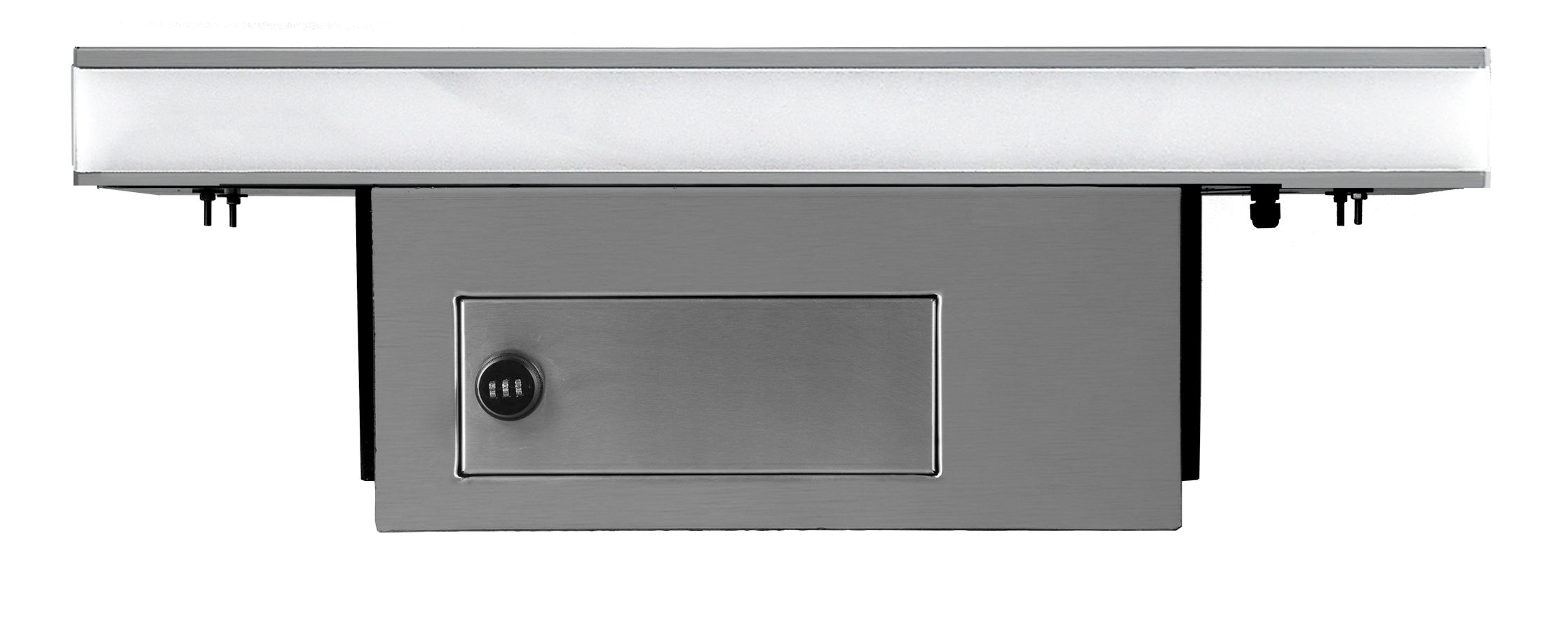

The front panel located below the lamp features an illuminated house number (maximum number of characters: 5) and a 23.5 x 1.5 cm letter slot that can accommodate letters up to C5 size (162 mm x 229 mm). The door with a combination lock (factory code is 000) located on the property side ensures the security of correspondence and convenience of use.

The left side of the front panel is reserved for a video intercom equipped with a wide-angle 2 Mpx/1080P camera with a viewing angle of 120° horizontally and 60° vertically, ensuring accurate control of the entrance area. The illuminated button makes it easy to call the monitor in conditions of limited visibility, e.g. at night. Different backlight colours indicate the current status of the device, i.e. standby, call, connection established and entrance unlocked.

The device is equipped with a 10-character touch keyboardthat allows you to release the electric strike by entering a 4-digit user code. The device memory is sufficient to program up to 200 user codes (4 digits) and one common code (6 digits).

The panel also offers the possibility of accessing the property using an RFID reader with key fobs or cards operating in the Mifare Classic standard. The set includes 4 key fobs, but the device can be expanded to support up to 200 keyfobs. The option of linking the keypad and the reader offers increased security. In this configuration, two-step verification will be required to gain access to the property, i.e. entering a code on the keypad and reading a programmed key fob or card.

The set also includes an RM-T471HD monitor offering the possibility of connecting up to 2 analogue 1Mpx cameras or AHD cameras up to 2MPx.

The high-quality 7" digital screen provides a high-contrast and clear image, and the 1024 x 600 px resolution allows you to view the smallest details of the camera image.The monitor can control the gate (after prior connection) using an additional function icon. The settings allow you to change the opening time of the gate/door.

The device is equipped with a memory module with a micro SD card reader with a maximum capacity of 256 GB, enabling the recording of photos or video sequences from the entrance panels. The memory module can operate automatically after the monitor is activated from the entrance panel or motion detection (if enabled).

The built-in WIFI card and LAN connection socket allow the connection to be transferred to a mobile device (e.g. smartphone or tablet) equipped with Android or iOS. The free Tuya Smart app allows you to receive calls, make audio/video calls and open the entrance even when you are away from home.

The lamp must be supplied with 12/24V DC or 230V AC voltage and an additional 15V DC voltage to power the video intercom (the set includes a power supply unit).

Specification

Colour temperature	6500K (cold)
Power consumption	Light version: 2,4 W (200x504 i 280x504) / 5 W (195x756 i 280x756) Multi version: 7,2 W (200x504 i 280x504) / 9,8 W (195x756 i 280x756)
Power supply	12/24 V DC or 230 V AC (lamp) + 15 V DC (video intercom)
IP protection	IP44
Lifetime	50,000 hours – white colour, 30,000 hours – orange colour
Material	Stainless steel (inox colour), Galvanised steel (RAL colours)
Dimensions of the slot for the letters	235 mm x 15 mm
Maximum letter size	C5 (162 mm x 229 mm)
Camera viewing angle	120° horizontally and 60° vertically
Monitor diagonal	7"
Monitor resolution	1024 x 600 px
Twilight sensor	No
Number of supported input panels	2
Number of supported CCTV cameras	2
Connecting the monitor to the Internet	WIFI or LAN
Video signal standard	AHD/PAL/NTSC
Power consumption video intercom (operation/standby)	4/1 W (panel), 18/4 VA (monitor)
Optics	AHD 1080p/ AHD 720p/ CVBS (default 1080p)
RFID reader	Mifare Classic standard, memory capacity of 200 key fobs/cards
Keyboard	10-character, 200 user codes (4 digits) + 1 common code (6 digits)

Product advantages

- warning function* - the lamp has a built-in orange warning light that activates during operation to signal that thegate motor is in use.

- adjustable warning light frequency* - the lamp has a built-in potentiometer that allows you to change the flashing frequency of the lamp.

- several lighting configuration options* - depending on the DIP switch settings, the warning light can flash, shine continuously or flash alternately with white light during operation.

- property personalisation – an address lamp allows you to clearly mark your property, combining the functionality of lighting with an aesthetic personalisation element.

- quick and easy installation – the lamp has been designed for easy installation, ensuring that it can be fitted quickly and without any problems.

- energy-saving LED technology – the LEDs used are characterised by low energy consumption and long operating time, making the lamp an economical and environmentally friendly source of light.

- light intensity adjustment option – the lamp has a switch that can be used to adjust the light intensity (OFF setting – 40%, ON setting – 100%).

- UV resistance – the acrylic glass shade is resistant to sunlight, which guarantees long and trouble-free use.

- wide range of colours – the lamp is available in many colours, making it easy to match the appearance of your fence.

- correspondence security – the letterbox is secured with a combination lock that guarantees protection against unauthorised access

- integrated video intercom – provides control over the entrance area and facilitates communication with visitors

* only available in the Multi version

Method of installation

It is best to plan the installation of the lamp during the construction of the fence. It will be necessary to prepare round or oval cables with a diameter suitable for PG7 glands (from 3.5 to 6 mm) for 12/24V DC or 230V AC power supply, as well as a power cable and a 4-wire transmission cable for the video intercom.

Mounting the lamp on the block requires making a hole for the box and the front and rear panels. Connect the prepared wiring and configure the lamp and video intercom as described in the enclosed instructions.

After connecting and testing the lamp, stick it to the block by evenly applying JONIEC® adhesive sealant and silicone in the places indicated in the instructions.

When installing two multi-lamps to one gate motor, they may operate asynchronously. In this case, adjust the flashing frequency of one of the lamps using the potentiometer located in the lamp controller.

When installing the lamp under the cap, after completing the above steps, apply JONIEC® adhesive sealant to the upper case of the lamp and press the cap lightly into place.
